Ultra Thin Recessed Series

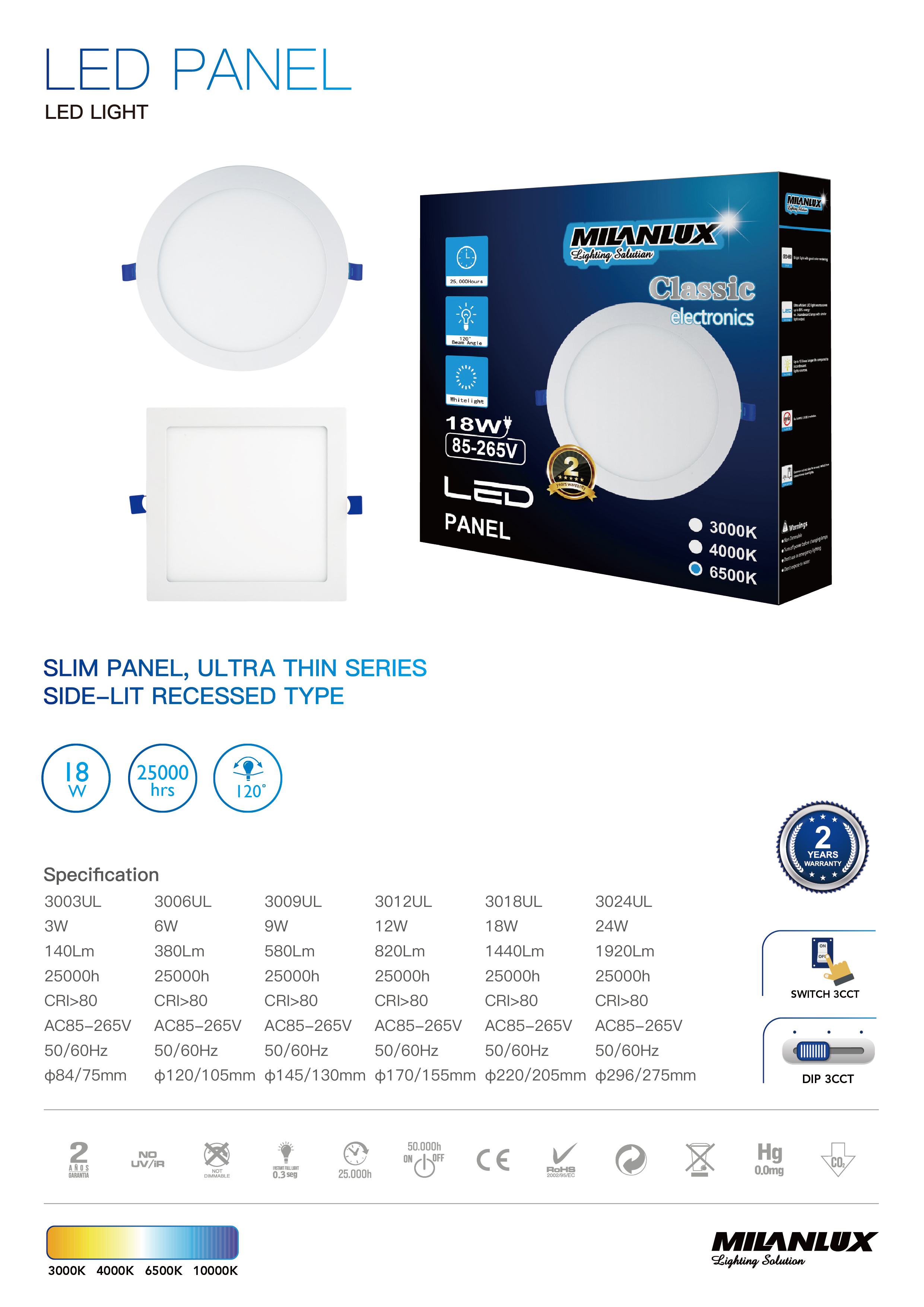

Model & Specification

• Model:3W,6W,9W,12W,18W,24W, Recessed Installation.
• AC85-265V/AC85-277V 50/60HZ.
• Key Points:Solves Your Challenge of "Limited Space" but "Need for High-Quality Lighting"
• Size & Design Flexibility
• · Ultra-thin & Compact: Specifically designed for space-constrained applications, the fixture body can be extremely slim (e.g., as thin as 7cm or less) for easy recessed integration.
• · Small Size Specifications: Offers a variety of compact square sizes (e.g., 85mm/cut hole:75mm; 120mm/cut hole:105mm;225mm/Cut hole:205mm;290mm/Cut hole:280mm) to fit snugly into tight spaces.
• High Efficiency & Light Quality
• · High Luminous Efficacy: Product efficacy can reach 80-90 lm/W or higher, ensuring significant energy savings.
• · Excellent Color Rendering: High-end models feature a Color Rendering Index (CRI) of ≥80, enabling true-to-life color reproduction—ideal for professional photography, retail displays, and similar applications.
• · High Uniformity & Visual Comfort: Utilizes back-lit technology and high-quality light guides to produce soft, even light that effectively minimizes harsh glare and eye strain.
• Reliability, Lifespan & Certifications
• · Extended Lifespan: The LED light source boasts a lifespan of up to 30,000 hours. High-end models feature even longer design lifespans, reducing long-term maintenance costs.
• · Wide Voltage Compatibility: Supports global wide-range voltage input (e.g., AC 85-265V or AC 100-240V), ensuring easy and adaptable installation worldwide.2-3Years Warranty.
• ·
• Multi-CCT in One Fixture, Reducing Inventory Pressure
• · Offers multiple solutions: single CCT, on/off 3-step CCT, DIP switch 3-CCT, and DIP switch 4-CCT. This allows for adjustable color temperature settings based on end-user preference, all from a single fixture model.
• CE, RoHS, and ERP approval. UL , SAA, and SASO can be provided as market requirements.
